Kubernetes Networking + Service Discovery

Kubernetes Services Explained: ClusterIP, NodePort, LoadBalancer, ExternalName and Headless Services

Kubernetes Pods are dynamic. They restart, scale, move between nodes, and receive new IP addresses. A Kubernetes Service solves this by giving your application a stable network identity and a predictable way to route traffic to the right Pods.

This guide explains how Kubernetes Services work, how traffic flows from users to Services and Pods, when to use each Service type, and how to debug common Service problems in real clusters.

View architecture Compare Service types Debug Service issues Watch video
Simple meaning A Service is a stable front door for one or more dynamic Pods.
Main problem solved Pod IPs change, but application traffic still needs a stable destination.
How it selects Pods Labels and selectors connect the Service to matching backend Pods.
Most common types ClusterIP, NodePort, LoadBalancer, ExternalName, and Headless Service.
Kubernetes Service Architecture

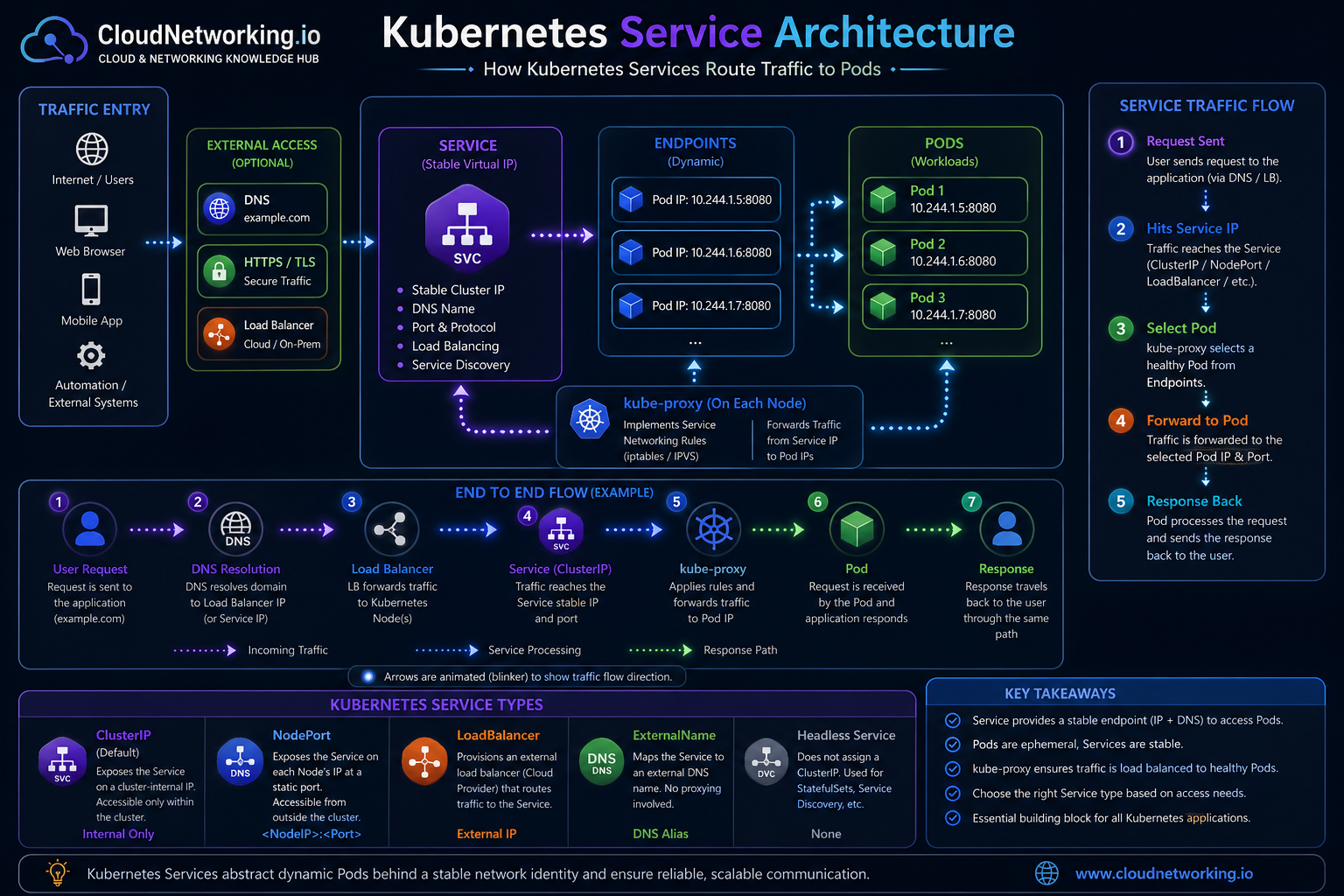

Kubernetes Service Architecture Diagram

The diagram below shows the most important concept: users or applications do not need to know the Pod IP. Traffic reaches the Service, the Service maps to Endpoints, and kube-proxy forwards traffic to healthy Pods.

CloudNetworking.io Kubernetes Service reference

Service route flow, Endpoints, Pods, kube-proxy, Service types, and troubleshooting-friendly architecture.

Service Endpoints Pods kube-proxy DNS
Kubernetes Service Architecture Diagram by CloudNetworking.io
Remember this simple rule: Pods run the application, but Services provide the stable access point.
Simple visual explanation

Simple Kubernetes Service to Pod Flow

This simple visual is useful for beginners: one Service sits in front of multiple Pods. The user or another application talks to the Service, and Kubernetes forwards the request to one of the matching Pods.

Simple Kubernetes Service to Pod traffic flow

Client or application

The caller may be a browser, another microservice, a job, or an internal application. It sends traffic to the Service name or Service IP.

Service

The Service is the stable network identity. It has a stable ClusterIP and DNS name. It uses selectors to find matching Pods.

Selected Pods

Pod 1 — 10.0.0.1
Pod 2 — 10.0.0.2
Pod 3 — 10.0.0.3
In real clusters, Pod IPs are not something you should hardcode in applications. Use the Service name instead.
Service basics

What is a Kubernetes Service?

A Kubernetes Service is an abstraction that exposes a group of Pods through a stable network endpoint. Instead of calling a Pod directly, clients call the Service. Kubernetes then sends the traffic to one of the matching backend Pods.

Without a Service

An application must know the Pod IP. If the Pod restarts, scales, or moves, the IP may change and the connection can break.

With a Service

The application uses a stable Service name or IP. Kubernetes keeps the backend Pod list updated automatically.

Easy analogy: Pods are like employees who may change desks. A Service is like the department phone number. People call the department number, not an individual desk number.
Why Services matter

Why do Kubernetes Services exist?

Services exist because Kubernetes workloads are dynamic. Deployments create and replace Pods. Autoscaling adds or removes Pods. Health checks may remove unhealthy Pods. A stable Service layer keeps communication reliable while Pods change behind the scenes.

Stable IP and DNS

A Service gets a stable virtual IP and DNS name inside the cluster.

Load balancing

Traffic can be distributed across matching backend Pods.

Service discovery

Applications can discover each other using Service names instead of Pod IPs.

Decoupling

The caller does not need to know which Pod is currently alive.

Scaling support

If Pods scale from 2 to 10, the Service continues to provide the same stable entry point.

Safer deployments

Rolling updates can replace Pods while the Service remains stable.

Kubernetes Service types

Kubernetes Service types explained

The Service type decides how the Service is exposed. Choosing the right type depends on whether traffic is internal, node-based, cloud load balancer based, DNS-based, or headless for direct Pod discovery.

Service Type Access Scope Best Use Case Example Scenario
ClusterIP Internal cluster access only Microservice-to-microservice communication Frontend talks to backend API inside the cluster
NodePort Exposes a port on every node Labs, testing, simple external access Access app using node IP and static port
LoadBalancer External access through cloud or external load balancer Public applications in managed Kubernetes Expose web app in AKS, EKS, or GKE
ExternalName DNS alias to external name Point internal apps to external services Map service name to external database DNS
Headless Service No ClusterIP, direct endpoint discovery StatefulSets, databases, service discovery MongoDB, Cassandra, Kafka, custom discovery
Quick rule: use ClusterIP for internal traffic, LoadBalancer for external cloud traffic, and Headless Service when clients need direct Pod discovery.
Traffic flow

How Kubernetes Service traffic flows

This is the most important traffic path to understand. A request reaches the Service, kube-proxy applies the networking rules, and the request is forwarded to one of the backend Pod IPs from the Endpoints list.

1
User request User, app, or client sends request.
2
DNS resolves Service name resolves to Service IP.
3
Service IP Traffic reaches ClusterIP or external entry.
4
kube-proxy Rules select backend endpoint.
5
Endpoint One Pod IP and port is selected.
6
Pod receives Application processes request.
7
Response Response goes back to caller.
The Service itself is not your application. It is a stable networking abstraction that routes traffic to Pods.
YAML examples

Kubernetes Service YAML examples

These examples show common Service configurations. The key fields to understand are type, selector, port, and targetPort.

ClusterIP Service

apiVersion: v1
kind: Service
metadata:
  name: backend-service
  namespace: default
spec:
  type: ClusterIP
  selector:
    app: backend
  ports:
    - name: http
      protocol: TCP
      port: 80
      targetPort: 8080

LoadBalancer Service

apiVersion: v1
kind: Service
metadata:
  name: web-service
  namespace: default
spec:
  type: LoadBalancer
  selector:
    app: web
  ports:
    - name: http
      protocol: TCP
      port: 80
      targetPort: 8080

port

The port exposed by the Service. Clients connect to this port.

targetPort

The port where the application is listening inside the Pod.

selector

The label match used to connect the Service to backend Pods.

Very common issue: the Service selector does not match the Pod labels. In that case, the Service exists but has no valid backend Endpoints.
Real-world scenarios

Real-world Kubernetes Service scenarios

Below are common scenarios where Kubernetes Services are used in real environments.

Frontend to backend API

A frontend Pod calls http://backend-service. The backend Pods may scale or restart, but the Service name remains the same.

Public web application

A LoadBalancer Service exposes the application externally. The cloud provider creates an external load balancer.

Internal database access

Internal applications connect to a database through a ClusterIP Service, keeping database access inside the cluster.

Stateful applications

Headless Services are useful when clients need to discover individual Pod identities, such as StatefulSet workloads.

Migration from external service

ExternalName can provide a Kubernetes Service name that maps to an external DNS name during migration.

Testing through NodePort

NodePort can expose a test application through a node IP and fixed port, but it is usually not the cleanest production pattern.

Debugging and troubleshooting

How to debug Kubernetes Service issues

Most Kubernetes Service problems are caused by selector mismatch, missing Endpoints, wrong targetPort, Pod readiness issues, DNS issues, NetworkPolicy blocks, or cloud LoadBalancer provisioning problems.

1. Check the Service

Confirm Service type, ClusterIP, ports, selector, and external IP if applicable.

kubectl get svc
kubectl describe svc backend-service

2. Check Endpoints

If Endpoints are empty, the Service is not connected to Pods.

kubectl get endpoints backend-service
kubectl get endpointslices

3. Check Pod labels

Make sure the Service selector matches actual Pod labels.

kubectl get pods --show-labels
kubectl get svc backend-service -o yaml

4. Check Pod readiness

Pods that are not Ready may not receive traffic.

kubectl get pods
kubectl describe pod <pod-name>

5. Test DNS from inside cluster

Run a temporary debug Pod and test Service name resolution.

kubectl run tmp-shell --rm -it \
  --image=busybox:1.36 -- sh

nslookup backend-service
wget -qO- http://backend-service

6. Check targetPort

Service targetPort must match the port your container listens on.

kubectl get deploy backend -o yaml
kubectl describe svc backend-service

Problem: Service has no Endpoints

Cause is usually selector mismatch or Pods not Ready. Check kubectl get pods --show-labels and compare with spec.selector in the Service.

Problem: DNS works but app fails

DNS may resolve correctly, but the Pod may not be listening on the expected targetPort. Check container port, app logs, readiness probes, and Service targetPort.

Problem: LoadBalancer external IP pending

In cloud Kubernetes, this can mean the cloud controller cannot create a load balancer, permissions are missing, quota is reached, subnet tags are wrong, or the cluster is not integrated correctly.

Problem: Service unreachable across namespaces

Use the full DNS name: service-name.namespace.svc.cluster.local. Also check NetworkPolicy, namespace, and Service name spelling.

Quick debugging checklist

  • Does the Service exist in the expected namespace?
  • Does the Service selector match Pod labels?
  • Does the Service have Endpoints or EndpointSlices?
  • Are the backend Pods Ready?
  • Is targetPort correct?
  • Can DNS resolve the Service name inside the cluster?
  • Is NetworkPolicy blocking the traffic?
  • For LoadBalancer, did the cloud provider create the external load balancer?
Common mistakes

Common Kubernetes Service mistakes

Using Pod IPs directly

Pod IPs are temporary. Use Service DNS names for stable communication.

Selector mismatch

If selectors do not match labels, the Service has no backend Endpoints.

Wrong targetPort

The Service may point to a port where the application is not listening.

Confusing Service and Ingress

A Service exposes Pods. Ingress usually handles HTTP/HTTPS routing to Services.

Using NodePort everywhere

NodePort is useful for testing, but ClusterIP and Ingress/LoadBalancer are often cleaner.

Ignoring readiness

If Pods are not Ready, Service traffic may not reach them as expected.

Video learning

Kubernetes Services video

Watch this video to reinforce how Kubernetes Services work and then use the diagrams and debugging sections above as a practical reference when working with real clusters.

Interview preparation

Common Kubernetes Service interview questions

Why do we need Services?

Because Pods are dynamic and clients need a stable way to reach them.

What is the default Service type?

ClusterIP is the default Service type.

What does a selector do?

It matches the Service to Pods using labels.

What is the difference between port and targetPort?

port is exposed by the Service. targetPort is where the Pod application listens.

What is a Headless Service?

A Service with no ClusterIP, often used for direct Pod discovery and StatefulSets.

How do you debug a Service with no traffic?

Check Service, selectors, Endpoints, Pod readiness, targetPort, DNS, and NetworkPolicy.

Official references

Official Kubernetes references

Use these official references for deeper platform-specific details after understanding the concepts on this page.

Kubernetes Services

Official documentation for Kubernetes Service concepts and usage.

Open official docs →

DNS for Services

Official documentation for how DNS works for Kubernetes Services and Pods.

Open DNS docs →

Debug Services

Official guide for debugging Services, DNS, and networking behavior.

Open debugging docs →
