AWS Subnets Explained

What is an AWS subnet?

An AWS subnet is a smaller IP network range carved out from a larger VPC CIDR block. It helps divide the VPC into logical sections so that different resources can be grouped, routed, and secured more effectively.

Instead of placing every resource into one flat network, subnets allow you to separate different types of workloads such as load balancers, application servers, databases, bastion hosts, and internal services.

Why subnets matter in AWS

Good subnet design makes AWS networking easier to manage, scale, and secure. Poor subnet design creates long-term pain around IP exhaustion, routing confusion, and inconsistent architecture patterns.

Public vs private subnets

One of the most important subnet concepts in AWS is the difference between public and private subnets. The subnet itself is not “public” or “private” because of its name. It becomes public or private based on its routing behaviour.

Typical placement

• Public subnets: ALB, bastion host, public reverse proxy
• Private subnets: application servers, internal APIs, databases, worker nodes

CIDR basics for subnets

Each subnet uses a CIDR range that comes from the parent VPC CIDR block. CIDR determines how many IP addresses are available inside the subnet.

VPC CIDR:       10.0.0.0/16
Public Subnet:  10.0.1.0/24
Private Subnet: 10.0.2.0/24
DB Subnet:      10.0.3.0/24

Why CIDR matters

• It defines subnet size and IP capacity.
• It affects future expansion ability.
• It determines whether you can add more resources later without redesigning the VPC.

Subnet sizing strategy

One of the most common AWS networking mistakes is creating subnets that are too small. Even when the current number of instances is low, subnets should be sized with growth, scaling events, and managed service needs in mind.

Things to consider when sizing

• Auto scaling growth
• Container and node scaling
• Load balancer and managed service attachments
• Future environment expansion
• AWS reserved IP addresses in every subnet

AWS reserved IP addresses in each subnet

AWS reserves five IP addresses in every subnet. This is a very important detail that many people forget during subnet design and interview discussions.

Why this matters

• Your usable IP count is always lower than the total subnet size.
• Very small subnets can become unusable faster than expected.
• This is especially important in tightly sized non-prod or test environments.

Example: /24 subnet
Total IPs: 256
AWS reserved: 5
Usable IPs: 251

Availability Zone based subnet design

Subnets are tied to a single Availability Zone. This means a subnet does not span across multiple AZs. If you want a resilient design, you create separate subnets in multiple AZs.

Example multi-AZ layout

VPC: 10.0.0.0/16

AZ-a
  Public Subnet:  10.0.1.0/24
  Private Subnet: 10.0.11.0/24

AZ-b
  Public Subnet:  10.0.2.0/24
  Private Subnet: 10.0.12.0/24

This kind of design is common for load balancers, highly available application tiers, and resilient backend services.

Route tables, Internet Gateway, and NAT Gateway relationship

Subnets do not decide traffic behaviour on their own. Route tables attached to the subnet determine where traffic goes.

Typical routing pattern

Public Subnet Route Table
0.0.0.0/0 ---> Internet Gateway

Private Subnet Route Table
0.0.0.0/0 ---> NAT Gateway

This is why subnet design and route table design always go together. A subnet without understanding its route table is only half the story.

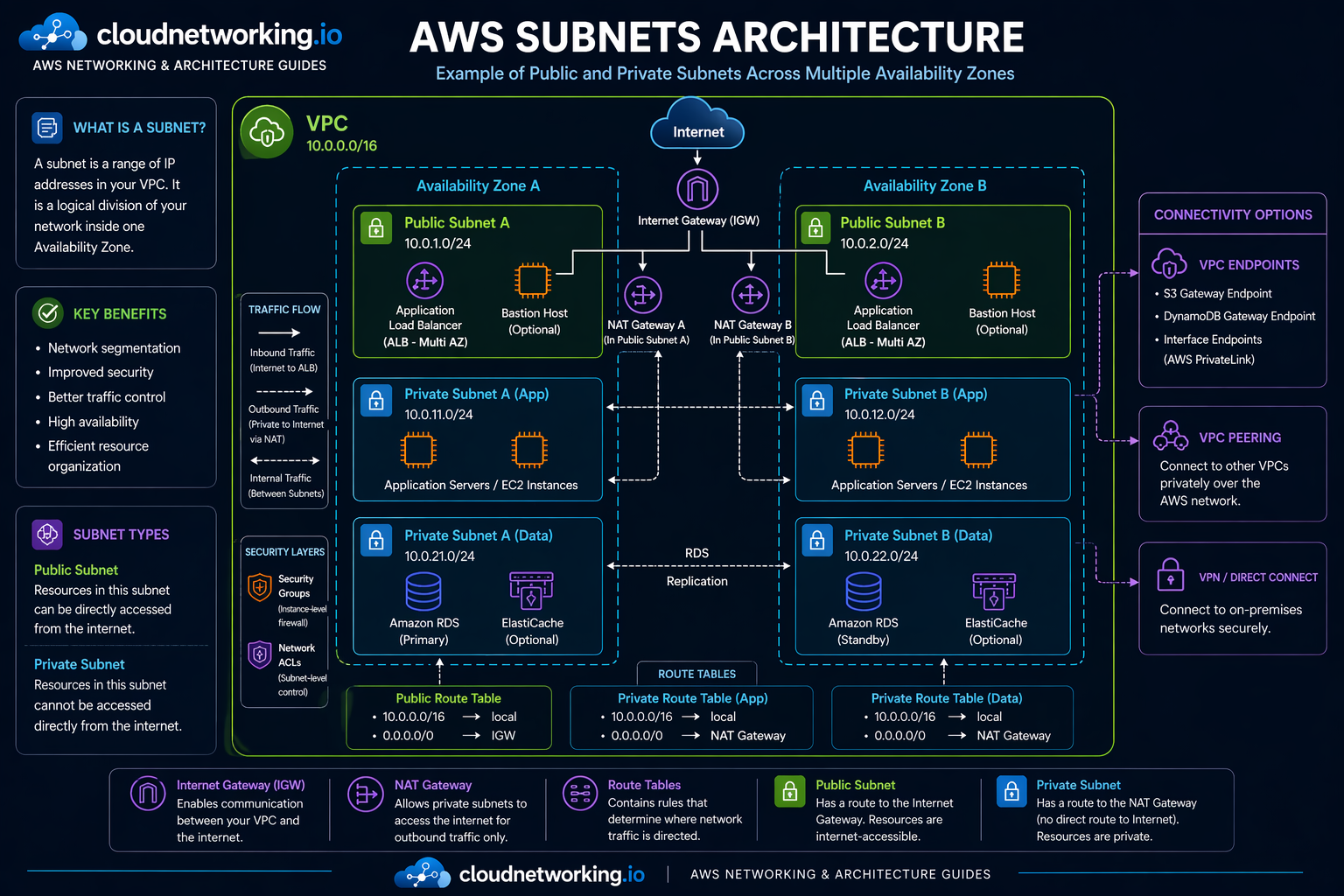

AWS subnets architecture diagram

The diagram below shows a practical AWS subnet design across multiple Availability Zones, with public and private subnets, NAT Gateways placed in public subnets, multi-AZ load balancer behavior, app and data tiers, route tables, and common connectivity options.

Real-world subnet architectures

Two-tier architecture

Internet
   |
   v
Public Subnet ---> ALB / Bastion
   |
   v
Private Subnet ---> Application servers

Three-tier architecture

Internet
   |
   v
Public Subnet ---> ALB
   |
   v
Private App Subnet ---> Application servers
   |
   v
Private DB Subnet ---> Database

These patterns are common because they separate internet-facing traffic from internal application and database layers.

Terraform example for AWS subnets

Below is a simple example creating one public and one private subnet inside a VPC.

resource "aws_subnet" "public" {
  vpc_id                  = "vpc-12345678"
  cidr_block              = "10.0.1.0/24"
  availability_zone       = "af-south-1a"
  map_public_ip_on_launch = true

  tags = {
    Name = "public-subnet-a"
  }
}

resource "aws_subnet" "private" {
  vpc_id            = "vpc-12345678"
  cidr_block        = "10.0.11.0/24"
  availability_zone = "af-south-1a"

  tags = {
    Name = "private-subnet-a"
  }
}

What this Terraform does

• Creates one public subnet with automatic public IP assignment.
• Creates one private subnet for internal workloads.
• Places both in the same Availability Zone for this example.

Common subnet mistakes

Making subnets too small

Small subnets may seem fine initially but become limiting when workloads scale or new services are added.

Confusing public IPs with public subnets

A subnet is public because of routing to an Internet Gateway, not just because something inside it has a public IP.

Poor AZ planning

Creating everything in one AZ defeats much of AWS’s resilience model.

Mixing unrelated workloads

Putting front-end, app, and database resources into one subnet usually creates security and operational confusion.

Ignoring route table dependencies

Many subnet issues are actually route table issues. Always review both together.

Subnet troubleshooting guide

Practical checklist

• Check subnet CIDR and available IP count.
• Confirm route table association.
• Validate IGW or NAT route configuration.
• Verify the subnet’s Availability Zone placement.
• Review whether the subnet is really intended to be public or private.
